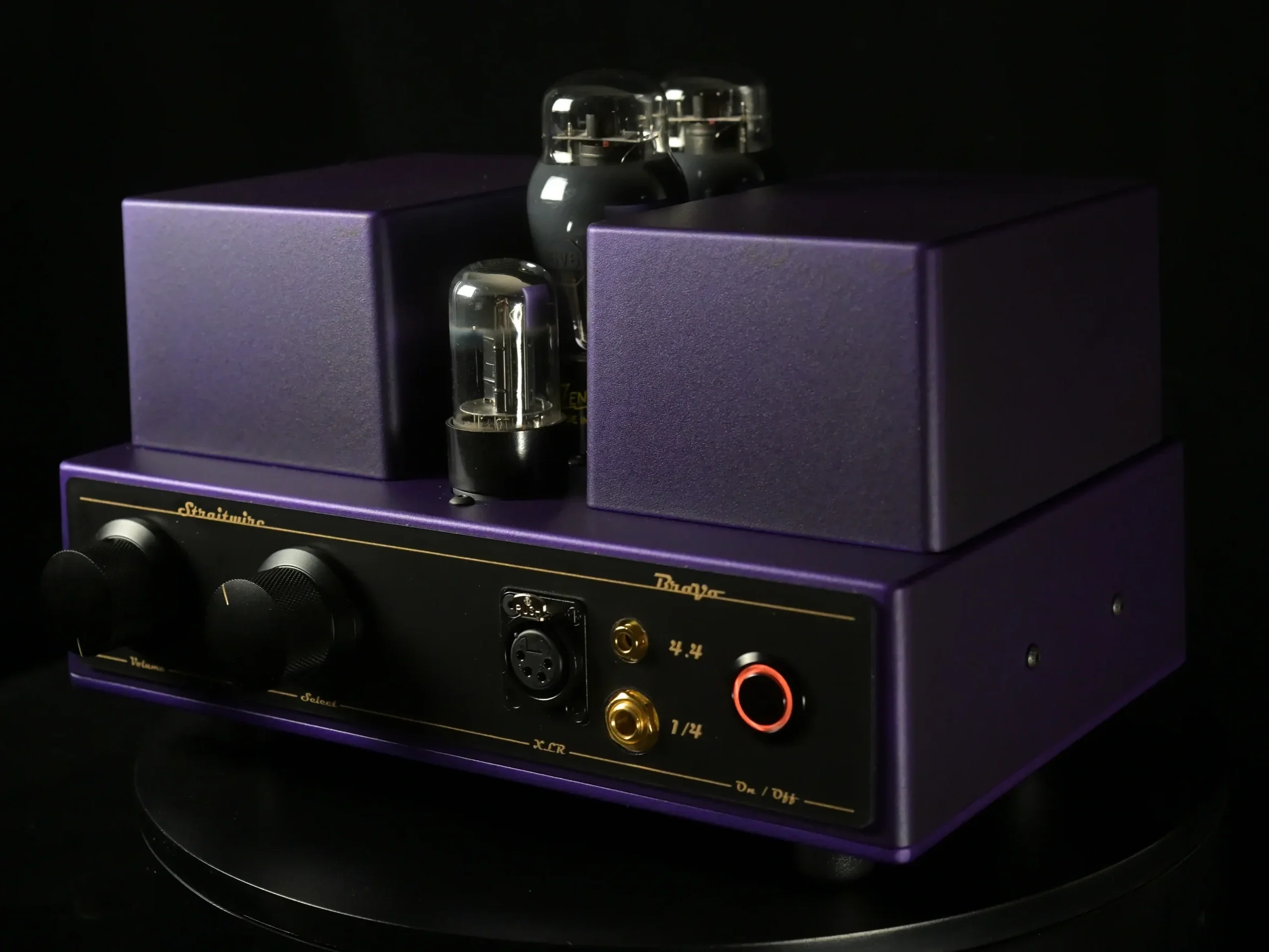

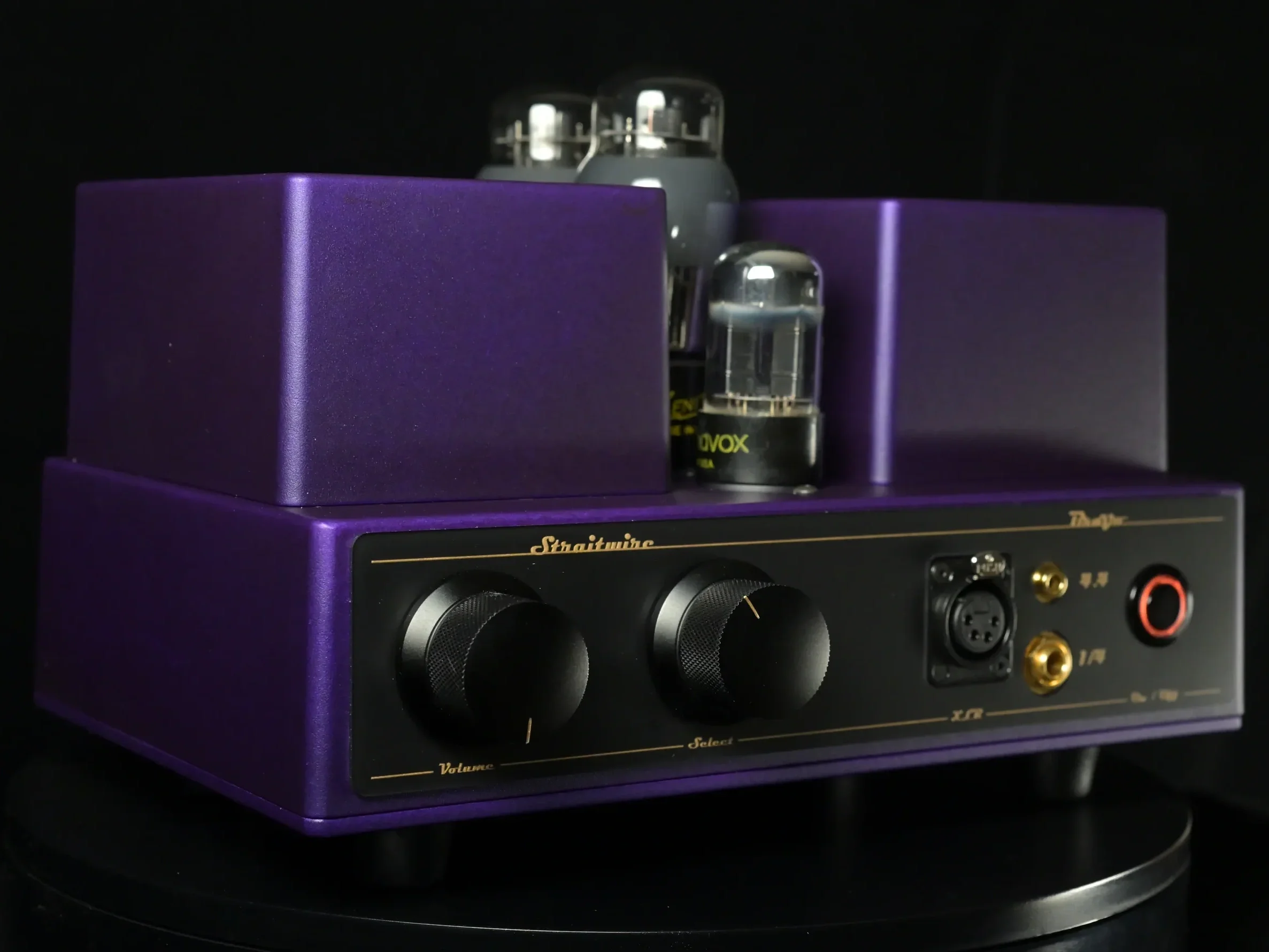

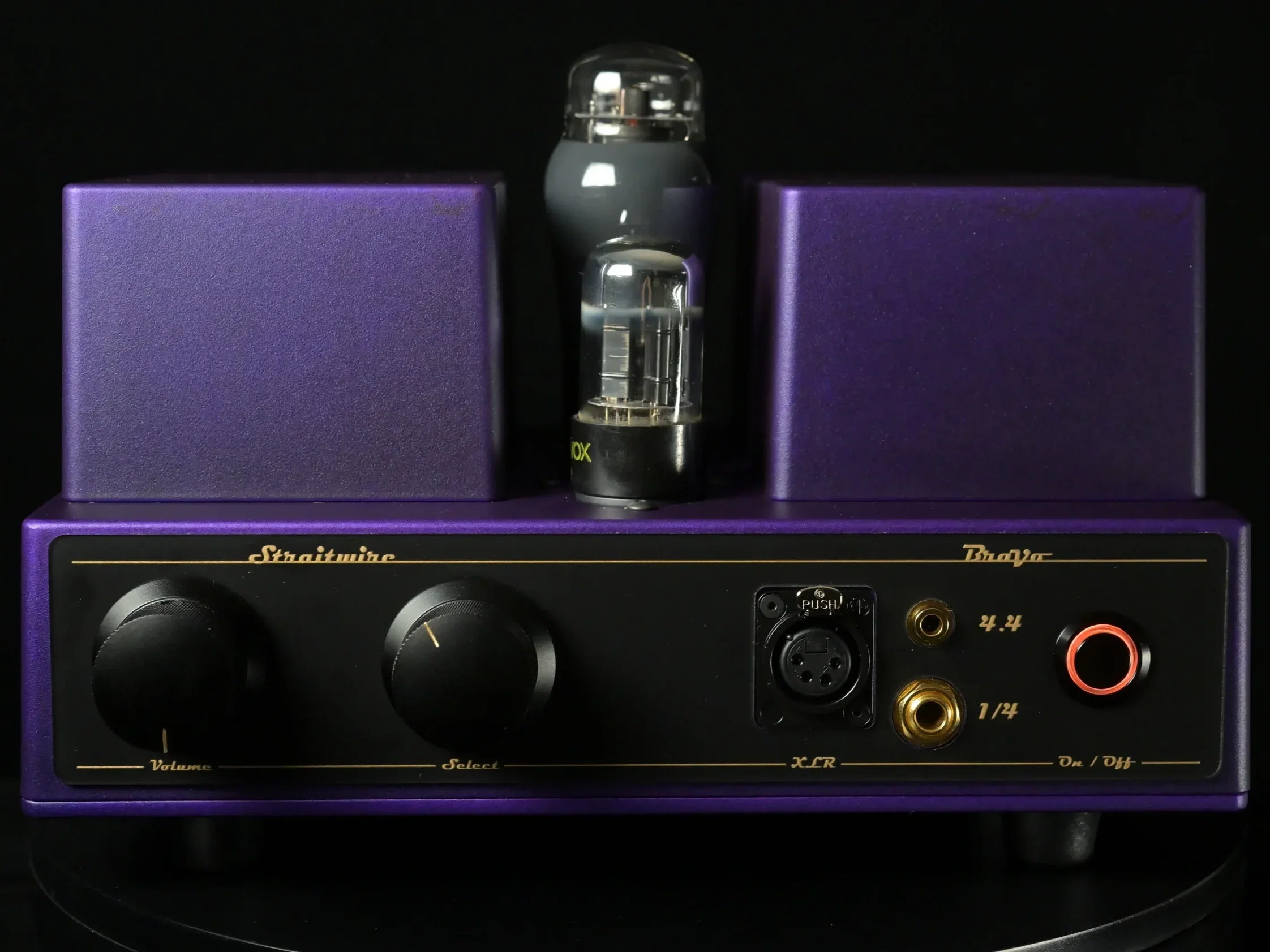

Straitwire X ETA Bravo

True dual mono power supply. Hand wired Point to Point amplifier.

6SN7 voltage amplifier driving 6V6's in Triode mode.
Custom Wound transformers and chokes.
Elevated DC filament supply above ground to make it quiet as possible.
B+ (high voltage) supply is rectified with Ultra Fast diodes and the plates of the 6SN7 are supplied with regulated B+ from a Zener diode chain.
High spec, high quality audio grade capacitors, resistors and power transformers run cool and quiet.
All gold plated RCA(3) inputs and outputs(XLR, 4.4mm, 6.35mm).
From the RCA jacks to the switch and from the volume pot to the 6SN7 grid is shielded using high quality coax cable.
TKD volume control
Selectable preamplifier output

Contact tony@straitwire.com or go to ETA Headphones for more information.
Here is a link to the review on Head-Fi, written by Alex Dydula:
https://www.head-fi.org/showcase/straitwire-x-eta-bravo-6v6-tube-headphone-amplifier.29160/reviews
