Specifications:
Class A Single Ended ECC99 Double Triode Voltage Amplifier Circuit

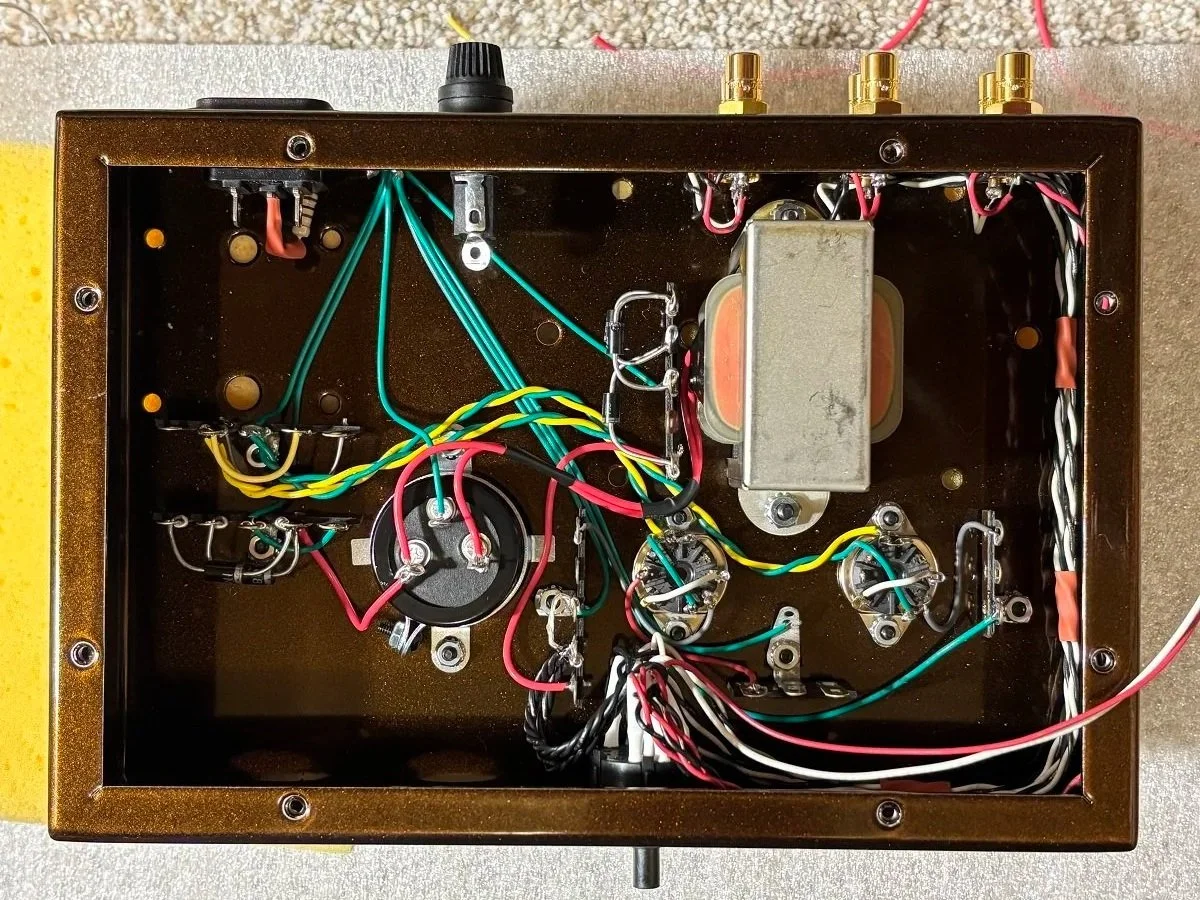

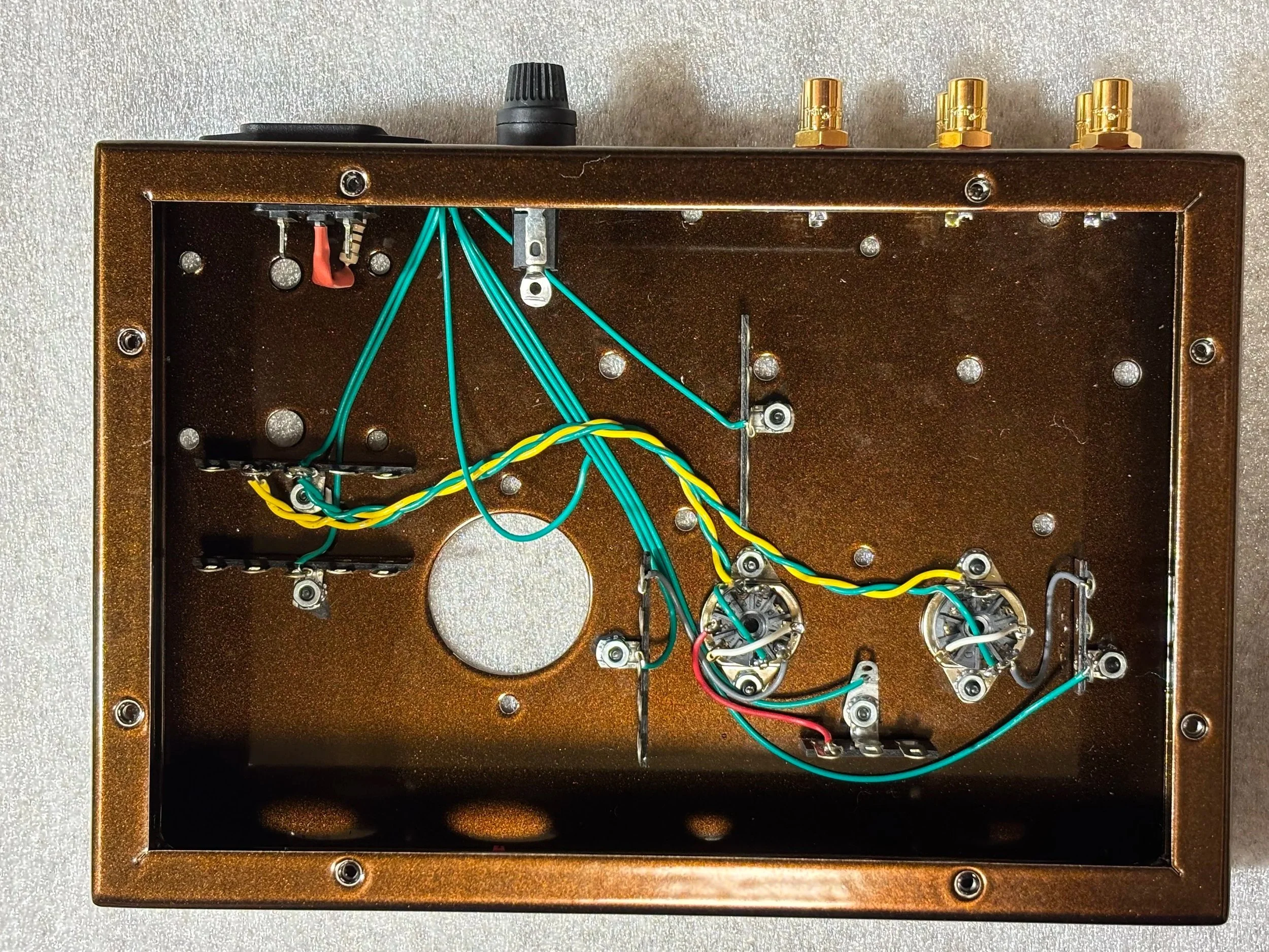

Point to Point Hand Wired

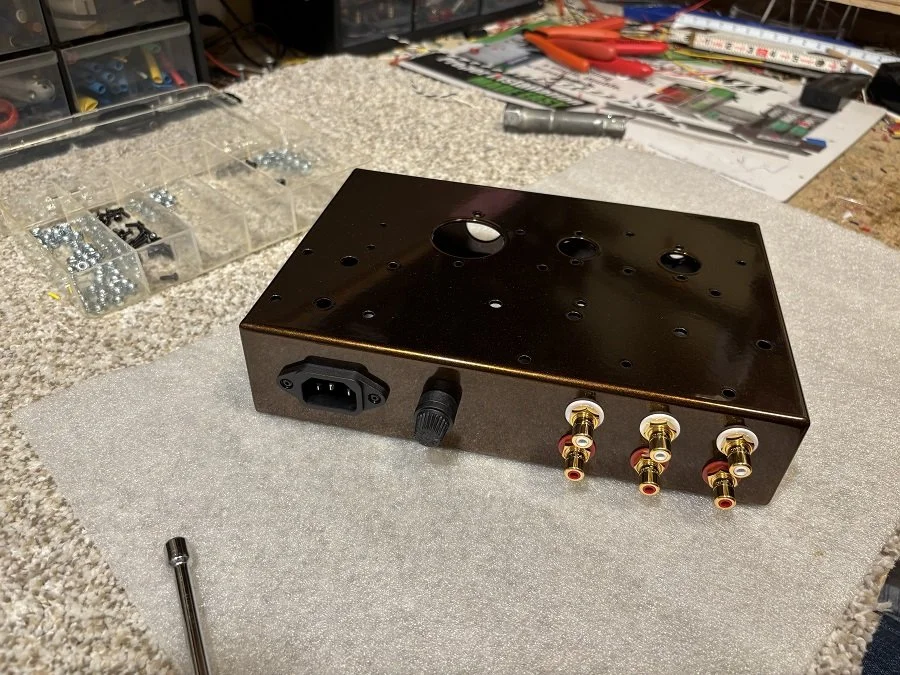

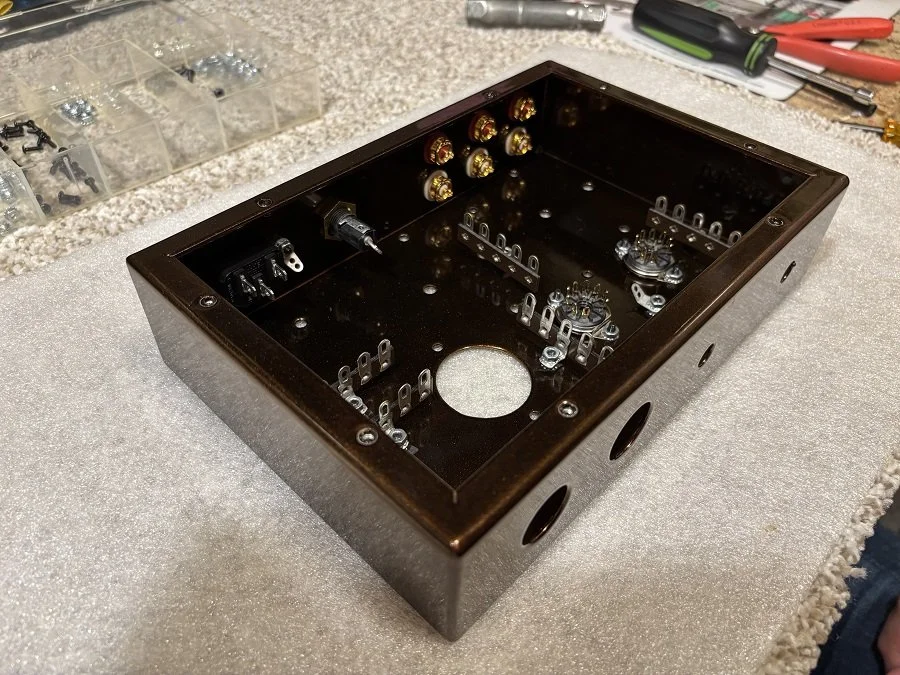

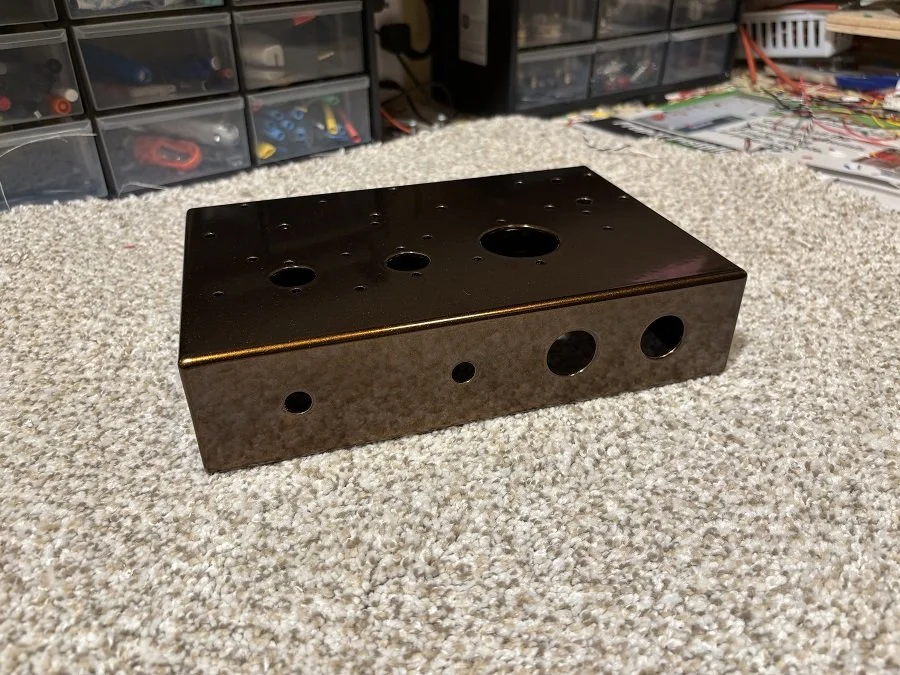

Powder Coated Chassis (Whiskey Bronze)
Custom wound output transformers, Made In USA
Custom wound filter choke, Made In USA
Heavy Duty Continuous Commercial Service power transformer
Alps Blue Velvet potentiometer
Gold plated selector switch
Gold plated tube sockets
CMC Gold plated RCA jacks
Solid State Rectification
Regulated B+
DC Filament
1.2 Watts output
Output Impedance 30 to 600 OHM
Noise floor is down better than -80 dB
Custom colors available (Contact for more information)
